Adding Landscape Explanatory Variables to ‘SSN’ Objects Directly in R Using StreamCatTools

Michael Dumelle, Marc Weber, and Ryan Hill

Source: vignettes/articles/StreamCatTools.Rmd

Background

Landscape explanatory variables can be added directly to SSN objects using the StreamCatTools R package. StreamCatTools interacts with StreamCat (Hill et al. 2016),a database of hundreds of metrics for approximately 2.65 million stream segments in the conterminous United States (CONUS). StreamCat metrics exist at catchment and watershed scales and represent natural and anthropogenic landscape variables. StreamCat is built on the medium resolution National Hydrogrpahy Dataset Plus (version 2.1). To learn more about StreamCat, visit their website at this link. In this vignette, will show how to use StreamCatTools to access StreamCat data; for more detail regarding StreamCatTools, visit their website at this link.

Before proceeding, we load the SSN2, StreamCatTools, and ggplot2 R packages (which can all be installed directly from CRAN) by running:

The bugs Data

The bugs data is an SSN object that contains macroinvertebrate data in the Lower Snake Basin. It can be downloaded via GitHub at this link. We read in bugs by running:

bugs <- ssn_import("bugs.ssn", predpts = "pred")

There are 549 observed sites and 300 prediction sites:

bugs
#> Object of class SSN
#>
#> Object includes observations on 13 variables across 549 sites within the bounding box
#>     xmin     ymin     xmax     ymax
#> -1765346  2459843 -1343175  2909567
#>
#> Object also includes 1 set of prediction points with 300 locations
#>
#> Variable names are (found using ssn_names(object)):
#> $obs
#>  [1] "comid"     "ELEV_DEM"  "AREAWTMAP" "Rich"      "rid"       "ratio"
#>  [7] "upDist"    "afvArea"   "locID"     "netID"     "pid"       "geometry"
#> [13] "netgeom"
#>
#> $pred
#>  [1] "comid"     "ELEV_DEM"  "AREAWTMAP" "rid"       "ratio"     "upDist"
#>  [7] "afvArea"   "locID"     "netID"     "pid"       "geom"      "netgeom"

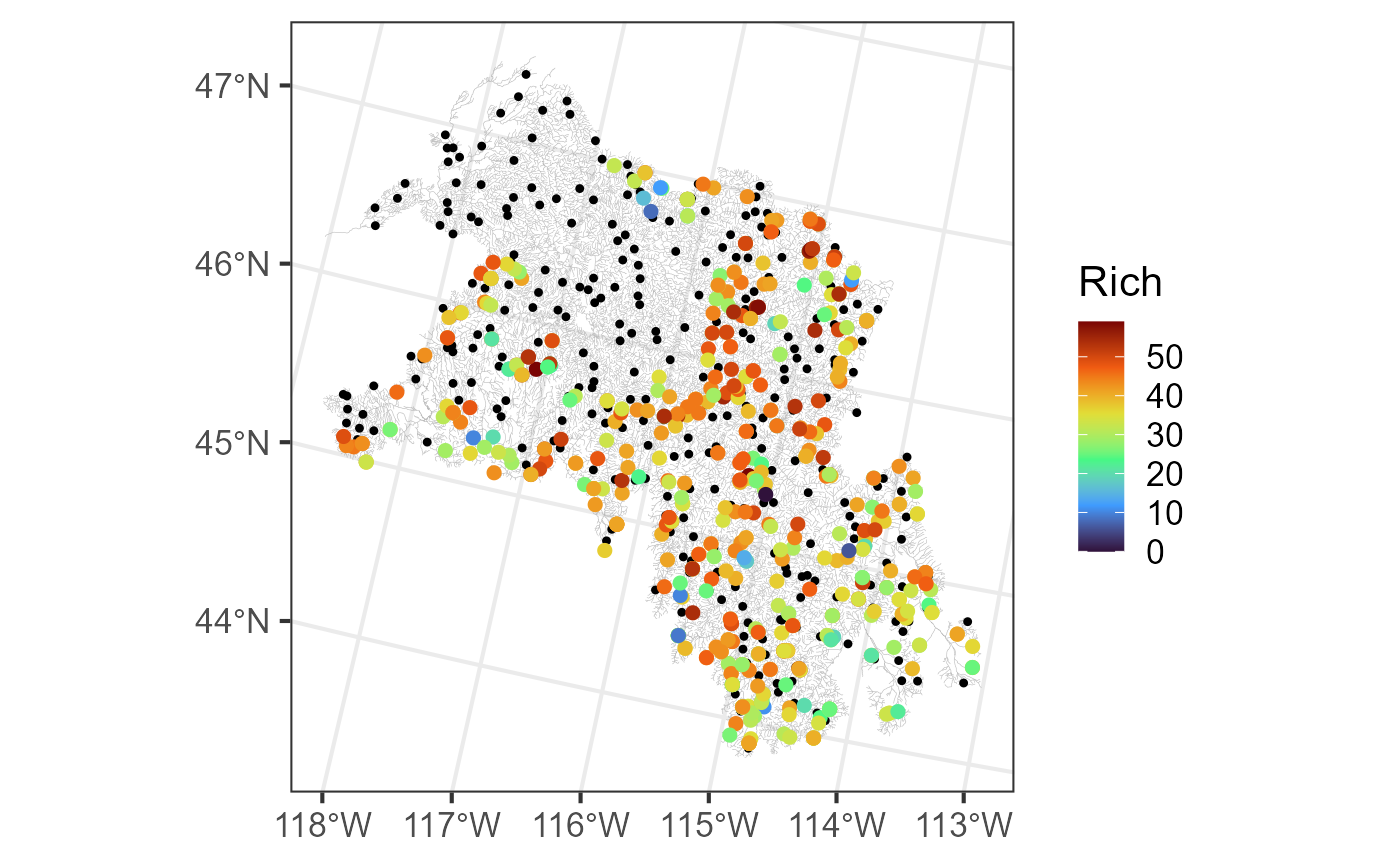

We visualize the flowlines (edges), observed macroinvertebrate richness (obs), and prediction sites (preds) by running:

ggplot() +
  geom_sf(data = bugs$edges, linewidth = 0.1, alpha = 0.8, color = "darkgrey") +
  geom_sf(data = bugs$preds$pred, color = "black", size = 0.9) +
  geom_sf(data = bugs$obs, aes(color = Rich), size = 2) +
  scale_color_viridis_c(option = "H", limits = c(0, 59)) +
  theme_bw(base_size = 16)

We create the hydrologic distance matrices required for fitting SSN models by running:

ssn_create_distmat(bugs, predpts = "pred")

Adding Explanatory Variables to an SSN Object

Any of the hundreds of StreamCat metrics can be added to observed and prediction sites through NHD’s common identifier, or COMID. The COMID is a 10 digit code that uniquely identifies an NHD feature. The bugs data has COMIDs available for each observed and prediction site. StreamCat metrics can be searched at this link or within StreamCatTools, which we discuss later.

In StreamCat, the "tmean8110" metric contains 30-year mean annual temperature between 1981 and 2010, and the pctconif2008 contains the proportion of evergreen forest land cover in 2008 (based on the National Landcover Dataset, or NLCD; see this link for more). StreamCat metrics are defined with respect to an “Area of Interest”, or AOI. Typically these are “cat” (for local catchment) or “ws” (for full upstream watershed). Additional AOIs exist for catchments and watersheds restricted to 100 meter riparian buffer. The sc_get_data() function in StreamCatTools returns metrics in the AOI based on COMID:

sc_vars <- c("tmean8110", "pctconif2008")
sc_data <- sc_get_data(
  metric = sc_vars,
  aoi = "cat",
  comid = bugs$obs$comid
)
head(sc_data)
#>      comid pctconif2008cat tmean8110cat
#> 1 23428382           85.10     7.663872
#> 2 23428446           93.14     6.605735
#> 3 23428578           94.49     6.685206
#> 4 23428848           94.16     6.353155
#> 5 23428858           90.34     6.584575
#> 6 23428892           99.89     4.959707

sc_data is a data frame with column comid, column pctconif2008cat (for pctconif2008 in the catchment AOI), and column tmean8110cat (for tmean8110cat). These metrics are merged to bugs$obs via "comid" by running:

bugs$obs <- merge(bugs$obs, sc_data, by = "comid")

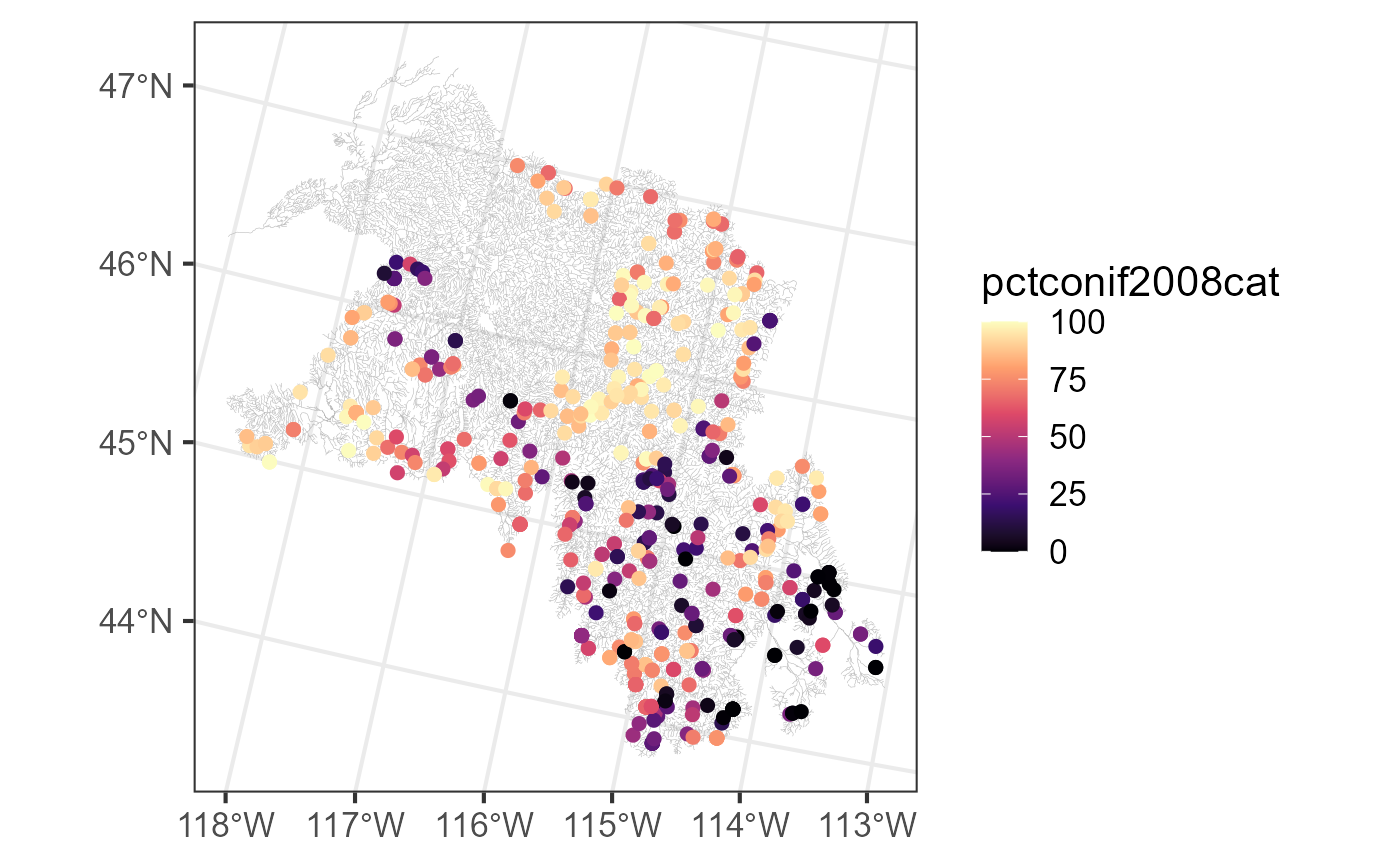

We visualize these new metrics spatially by running:

ggplot() +
  geom_sf(data = bugs$edges, linewidth = 0.1, alpha = 0.8, color = "darkgrey") +
  geom_sf(data = bugs$obs, aes(color = pctconif2008cat), size = 2) +
  scale_color_viridis_c(option = "A") +
  theme_bw(base_size = 16)

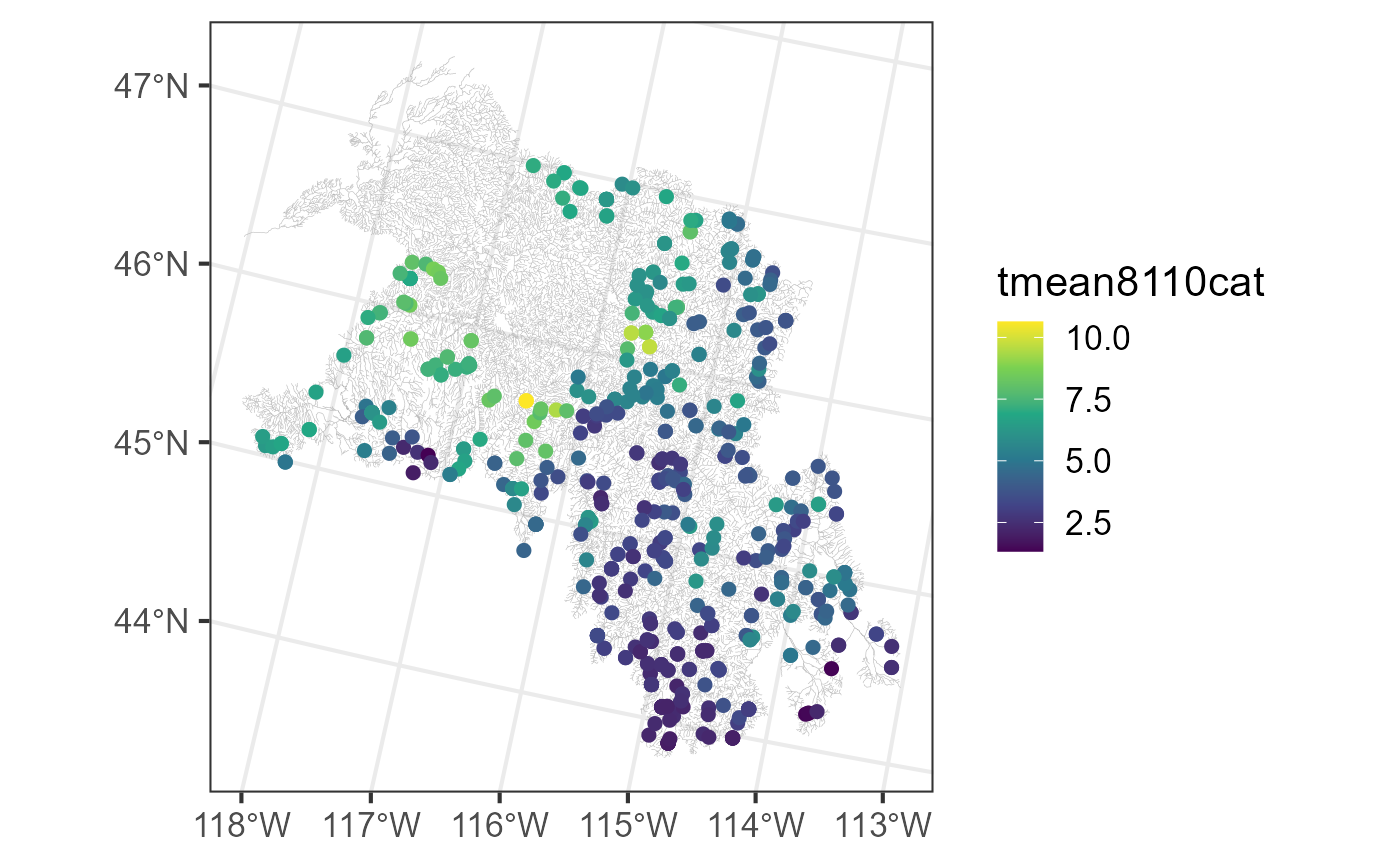

ggplot() +
  geom_sf(data = bugs$edges, linewidth = 0.1, alpha = 0.8, color = "darkgrey") +
  geom_sf(data = bugs$obs, aes(color = tmean8110cat), size = 2) +
  scale_color_viridis_c(option = "D") +
  theme_bw(base_size = 16)

Similarly, these metrics can be added to the prediction sites:

sc_pred_data <- sc_get_data(
  metric = sc_vars,
  aoi = "cat",
  comid = bugs$preds$pred$comid
)
bugs$preds$pred <- merge(bugs$preds$pred, sc_pred_data, by = "comid")

Fitting an SSN Model

We fit an SSN model describing species richness (the number of unique species) as a function of site elevation, 30-year mean annual temperature, and the percentage of the catchment with evergreen forest cover by running:

ssn_mod <- ssn_lm(
  formula = Rich ~ ELEV_DEM + tmean8110cat + pctconif2008cat,
  ssn.object = bugs,
  tailup_type = "exponential",
  taildown_type = "exponential",
  additive = "afvArea"
)
summary(ssn_mod)
#>
#> Call:
#> ssn_lm(formula = Rich ~ ELEV_DEM + tmean8110cat + pctconif2008cat,
#>     ssn.object = bugs, tailup_type = "exponential", taildown_type = "exponential",
#>     additive = "afvArea")
#>
#> Residuals:
#>     Min      1Q  Median      3Q     Max
#> -34.939  -4.916   2.135   7.168  23.143
#>
#> Coefficients (fixed):
#>                  Estimate Std. Error z value Pr(>|z|)
#> (Intercept)     58.222785   8.610861   6.762 1.37e-11 ***
#> ELEV_DEM        -0.010409   0.003305  -3.150  0.00163 **
#> tmean8110cat    -1.442592   0.760347  -1.897  0.05779 .
#> pctconif2008cat  0.027568   0.016689   1.652  0.09857 .
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Pseudo R-squared: 0.03298
#>
#> Coefficients (covariance):
#>                 Effect     Parameter   Estimate
#>     tailup exponential  de (parsill)       2.97
#>     tailup exponential         range  593762.56
#>   taildown exponential  de (parsill)      25.82
#>   taildown exponential         range   47730.45
#>                 nugget        nugget      60.30

Here, we modeled the spatial covariance using both a tailup exponential structure and a taildown exponential structure (we omitted a Euclidean structure). Based on the fitted model, there is strong evidence that increasing elevation is associated decreasing richness, on average (\(p\)-value < 0.01), some evidence that increasing temperature is associated with decreasing richness, on average (\(p\)-value \(\approx\) 0.06), and some evidence that increasing percent evergreen forest cover is associated with increasing richness, on average (\(p\)-value \(\approx\) 0.10).

Prediction (Kriging)

We augment the prediction sites with predictions by running:

aug_preds <- augment(ssn_mod, newdata = "pred")

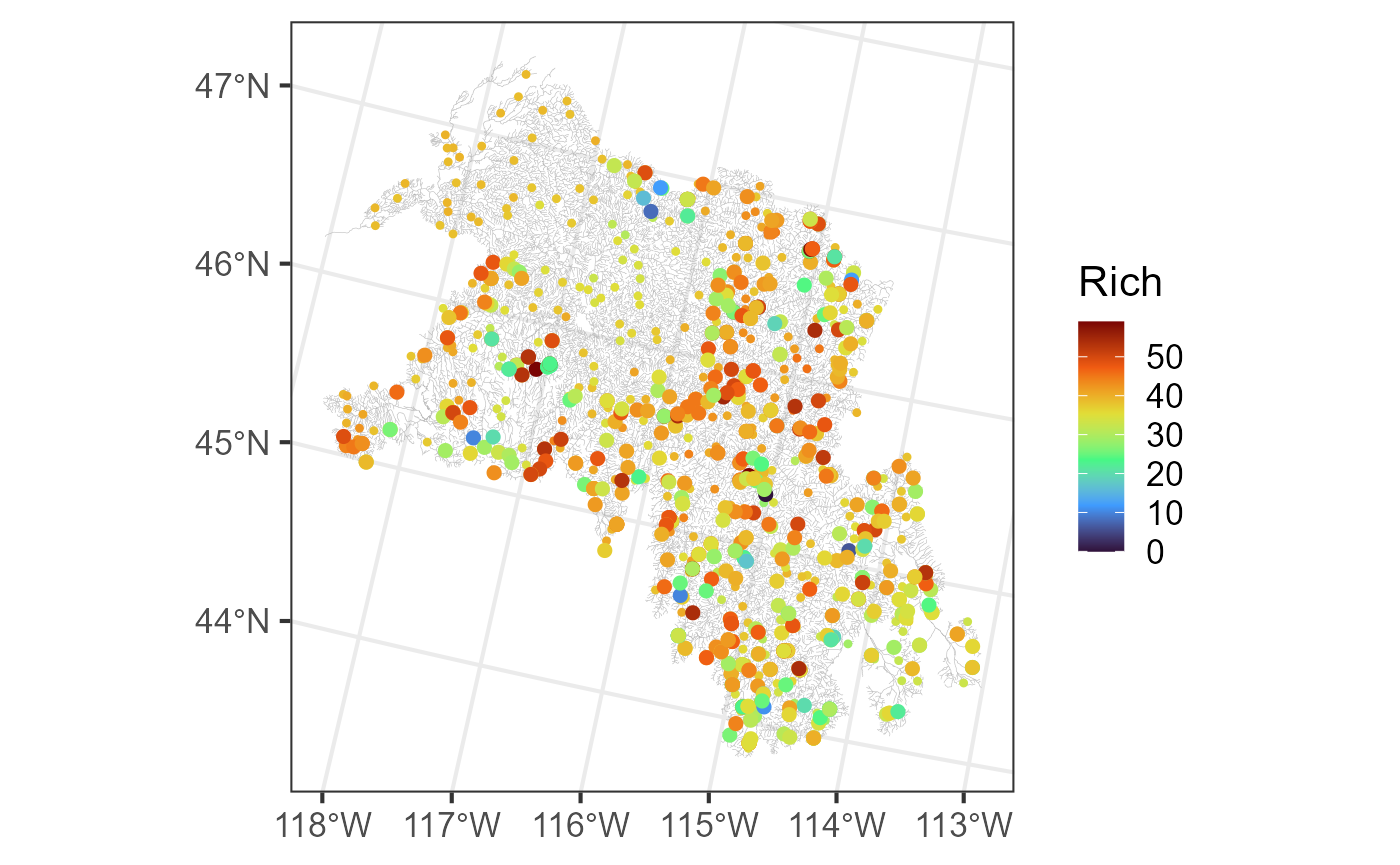

We visualize these predictions alongside the observed richness by running:

ggplot() +
  geom_sf(data = bugs$edges, linewidth = 0.1, alpha = 0.8, color = "darkgrey") +
  geom_sf(data = aug_preds, aes(color = .fitted), size = 0.9) +
  geom_sf(data = bugs$obs, aes(color = Rich), size = 2) +
  scale_color_viridis_c(option = "H", name = "Rich", limits = c(0, 59)) +
  theme_bw(base_size = 16)

We use block Kriging to predict the average species richness in the Lower Snake Basin alongside a prediction interval by running:

predict(ssn_mod, newdata = "pred", block = TRUE, interval = "prediction")
#>        fit     lwr      upr
#> 1 37.64725 36.0336 39.26091

Other StreamCatTools Features

There are several other StreamCatTools features which simplify the process of interacting with StreamCat. The sc_get_params() function returns parameters available using the StreamCat API. For example, we can learn details like AOI, category, units, and other metadata information for each metric by running:

var_info <- sc_get_params(param = "variable_info")
head(var_info)
#> # A tibble: 6 × 13
#>   category     metric aoi   year  short_description long_description units  dsid
#>   <chr>        <chr>  <chr> <chr> <chr>             <chr>            <chr> <dbl>
#> 1 Anthropogen… NABD_… Cat,… NA    NABD Dam Density  Density of geor… Coun…    33
#> 2 Anthropogen… NABD_… Cat,… NA    NABD NID Reservo… Volume all rese… Cubi…    33
#> 3 Anthropogen… NABD_… Cat,… NA    NABD Normal Rese… Volume all rese… Cubi…    33
#> 4 Natural      Preci… Cat,… NA    Surplus Precipit… This dataset re… Kilo…    75
#> 5 Soils        Rckde… Cat,… NA    Mean Bedrock Dep… Mean depth (cm)… Cent…    56
#> 6 Soils        agkff… Cat,… NA    Ag Soil Erodibil… Mean of STATSGO… Unit…    28
#> # ℹ 5 more variables: dataset <chr>, source_name <chr>, source_URL <chr>,
#> #   ACTIVE <dbl>, DSNAME <chr>

You can search for specific metrics that satisfy certain conditions using sc_get_metric_names(). For example, we can find all the climate variables measured at catchment and watershed scales by running:

sc_get_metric_names(category = "Climate", aoi = c("Cat", "Ws"))
#> # A tibble: 11 × 9
#>    Category Metric        AOI   Year  Short_Name Metric_Description Units Source
#>    <chr>    <chr>         <chr> <chr> <chr>      <chr>              <chr> <chr>
#>  1 Climate  bfi[AOI]      Cat,… NA    Base Flow… Base flow is the … Perc… USGS …
#>  2 Climate  precip8110[A… Cat,… NA    30-year M… PRISM climate dat… Mill… PRISM
#>  3 Climate  precip9120[A… Cat,… 1991… 30-year M… PRISM climate dat… Mill… PRISM
#>  4 Climate  precip[Year]… Cat,… 2008… Mean Prec… PRISM climate dat… Mill… PRISM
#>  5 Climate  tmax8110[AOI] Cat,… 1981… 30-year A… PRISM climate dat… Cels… PRISM
#>  6 Climate  tmax9120[AOI] Cat,… 1991… 30-year A… PRISM climate dat… Cels… PRISM
#>  7 Climate  tmean8110[AO… Cat,… 1981… 30-year M… PRISM climate dat… Cels… PRISM
#>  8 Climate  tmean9120[AO… Cat,… 1991… 30-year M… PRISM climate dat… Cels… PRISM
#>  9 Climate  tmean[Year][… Cat,… 2008… Mean Air … PRISM climate dat… Cels… PRISM
#> 10 Climate  tmin8110[AOI] Cat,… 1981… 30-year A… PRISM climate dat… Cels… PRISM
#> 11 Climate  tmin9120[AOI] Cat,… 1991… 30-year A… PRISM climate dat… Cels… PRISM
#> # ℹ 1 more variable: Dataset <chr>

If we only have access to x- and y-coordinates (instead of COMIDs), we can use sc_get_comid() to find the NHD feature that contains a coordinate by running:

sct_comid <- sc_get_comid(bugs$obs)

The COMIDs are stored in a single comma-separated vector (this is how StreamCat interacts its API). This vector can be separated into distinct COMIDs for more direct use with R by running

sct_comid <- unlist(strsplit(sct_comid, ","))

The COMIDs stored in bugs$obs match the COMIDs we accessed via sc_get_comid():

dat_comid <- data.frame(
  bugs_comid = bugs$obs$comid,
  sct_comid = sct_comid
)
head(dat_comid)
#>   bugs_comid sct_comid
#> 1   23428382  23428382
#> 2   23428382  23428382
#> 3   23428446  23428446
#> 4   23428578  23428578
#> 5   23428848  23428848
#> 6   23428858  23428858

Here, we have only briefly explored the potential for SSN2 integration with StreamCatTools; to learn more about StreamCatTools, visit their website at this link.

Alternatives to StreamCat

Several other landscape data sources exist for stream networks outside of CONUS. In Canada, there is the Canadian Hydrospatial Network (this link). In Europe, there is EU-Hydro (this link). In Australia, there is Geofabric (this link). Worldwide there is HydroAtlas (this link), though HydroAtlas data tends to be coarser than more localized data sets.
