Consider a pipe network with \({N}\) junction nodes and \({NF}\)
fixed grade nodes (tanks and reservoirs). Let \(q_{ij}\) be the flow
in the pipe connecting nodes \(i\) and \(j\) which is positive
if water flows from \(i\) to \(j\) and negative if it flows in the
opposite direction. The relation between the frictional head loss and the flow
in the pipe can be expressed as
(12.1)\[h_{Lij} = r \: q_{ij} \: |q_{ij}|^{n-1} + m \: q_{ij} \: |q_{ij}|\]
where \(h_{Lij}\) is head loss, \(r\) is a resistance coefficient, \(n\)
is a flow exponent, and \(m\) is a minor loss coefficient. The value of the resistance
coefficient will depend on which friction head loss formula is being used (see Table 3.1).
For a pump between nodes \(i\) and \(j\), the head loss (negative of the head gain)
can be represented by a power law of the form
where \(h_{0}\) is the shutoff head for the pump, \(\omega\) is a
relative speed setting, \(r\) and \(n\) are the pump curve
coefficients, and \(q_{ij}\) is required to be positive.
Conservation of energy across a link between nodes \(i\) and \(j\)
requires that
where the summation is made over all nodes \(j\) connected to node \(i\), and
by convention flow into a node is positive. \(D_{i}\) as a known demand flow
required to be delivered at node \(i\). For a set of known heads at the fixed
grade nodes, a solution is sought for the head \(h\) at each node and the flow
\(q\) in each link that satisfy Eqs. (12.3) and
(12.4).
EPANET uses Todini’s Global Gradient Algorithm (GGA) (Todini and Pilati, 1988)
to solve this system of equations. The GGA uses a linearization of the conservation
equations within an iterative Newton-Raphson scheme that results in a two-step solution
procedure at each iteration. The first step solves a \((N \times N)\) sparse system
of linear equations for nodal heads while the second step applies a scaler updating formula
to each link to compute its new flow. Todini and Rossman (2013) provide a full derivation
of the GGA and discuss the advantages it has over other network solution methods.
The algorithm begins with an initial estimate of the flow in each link that may not
necessarily satisfy flow continuity. At each iteration, new nodal heads are found by solving
a set of linear equations for \(\boldsymbol{h}\):
where \(\boldsymbol{A}\) is an \((N \times N)\) square symmetric coefficient matrix,
\(\boldsymbol{h}\) is an \((N \times 1)\) vector of unknown nodal heads, and
\(\boldsymbol{F}\) is an \((N \times 1)\) vector of right hand side terms.
The diagonal elements of the coefficient matrix are:
One interesting feature of the GGA is that the flow updating formula always
maintains flow continuity around each node after the first iteration.
The iterations continue until some suitable convergence criteria based on
the residual errors associated with the mass and energy conservation equations
are met or the changes in flows become negligible.
Pressure Dependent Demand Model
Now consider the case where the actual demand consumed at node \(i\), \(q_{Di}\),
depends on the pressure head \(p_{i}\) available at the node (where pressure head is
hydraulic head \(h_{i}\) minus the node’s known elevation \(E_{i}\)).
There are several different forms of pressure dependency that have been
proposed. Here we use Wagner’s equation (Wagner et al., 1988):
\(D_{i}\) is the full normal demand at node \(i\) when the pressure
\(p_{i}\) equals or exceeds \(P_{f}\), \(P_{0}\) is the pressure
below which the demand is \(0\), and \(\frac{1}{e}\) is a pressure function exponent usually set equal
to \(0.5\) (to mimic flow through an orifice).
The power function portion of Wagner’s equation can be inverted to express head
loss through a virtual link as a function of the demand flowing out of node \(i\)
to a virtual reservoir with fixed head \(P_{0} + E_{i}\):
where \(R_{Di} = (P_{f} - P_{0})/D_{i}^{e}\) is the virtual link’s resistance
coefficient. This expression can be folded into the GGA matrix equations,
where the pressure driven demands \(q_{D}\) are treated as the
unknown flows in the virtual links that honor the constraints in Wagner’s
demand equation. Introducing these virtual links neither expands the number of actual
links in the network nor increases the size of the coefficient matrix \(\boldsymbol{A}\).
The head loss \(h_{LD}\) and its gradient \(g_{D}\) across a
virtual demand link can be evaluated as follows (with node subscripts
suppressed for clarity):
If the current demand flow \(q_D\) is greater than the full demand
\(D\):
The system of linear equations \(\boldsymbol{Ah} = \boldsymbol{F}\) is solved using
Cholesky decomposition applied to a sparse representation of the symmetric coefficient matrix
\(\boldsymbol{A}\) (George and Liu, 1981). Cholesky decomposition constructs a
lower triangular matrix \(\boldsymbol{L}\) such that:
where \(\boldsymbol{y}\) is an intermediate \((N \times 1)\) vector. Because
of the lower triangular structure of \(\boldsymbol{L}\) this set of equations can
be efficiently solved using backsubstitution.
Prior to starting the GGA, the Multiple Minimum-Degree method (Liu 1985) is used to
reorder the rows of \(\boldsymbol{A}\) (that correspond to the network’s junction nodes)
to reduce the amount of fill-in created when the matrix is factorized. Then the matrix
is symbolically factorized to identify the positions of the non-zero elements of
\(\boldsymbol{L}\) that need to be stored and operated on in memory. These
steps are only performed once prior to starting the GGA procedure. At each GGA
iteration the numerical values of \(\boldsymbol{L}\)’s elements are computed (since the
elements of \(\boldsymbol{A}\) have changed) after which new values for the
unknown head vector are computed.
Initial Flows
For the very first GGA iteration, the flow in a pipe is chosen as
the flow corresponding to a velocity of 1 ft/sec, while the flow
through a pump equals the design flow specified for the pump. For closed links,
the flow is set to be 10-6 cfs. (All computations are made with head
in feet and flow in cfs).
When a pressure-dependent demand analysis is made the initial value of demand
\(q_D\) equals the full demand \(D\). Initial emitter flows are set to zero.
Pipe Resistance Coefficent
As can be seen from Table 3.1, for the Hazen-Williams and Chezy-Manning pipe head loss formulas
the resistance coefficient (\(r\)) depends only on the pipe’s diameter, length and a
constant roughness coefficient. The same table shows that for the Darcy-Weisbach formula,
the resistance coefficient contains a friction factor term, \(f\), whose value
depends on both a constant roughness length \(\epsilon\) and pipe’s flow rate \(q\).
EPANET computes this friction factor by different equations depending on the flow’s
Reynolds Number (\(Re\)) defined as:
where \(d\) is the pipe’s diameter and \(\nu\) is the fluid’s kinematic viscosity.
For fully laminar flow with \(Re < 2,000\) the friction factor is given by (Bhave, 1991):
\[f = \frac{64}{Re}\]
Inserting this expression into the resistance coefficient formula listed in Table 3.1 and applying
it to the Darcy-Weisbach head loss equation produces the Hagen-Poiseuille formula for laminar flow:
\[h_L = r \: q\]
where
\[r = \frac {128 \: L \; \nu} {\pi \: g \: d^4}\]
with \(L\) = pipe length and \(g\) = the acceleration of gravity. Thus under this flow condition
head loss is a linear function of flow rate.
For fully turbulent flow (Re > 4,000) the Swamee and Jain approximation to the Colebrook - White
equation (Bhave, 1991) is used to compute \(f\):
For transitional flow (\(2,000 < Re < 4,000\)) \(f\) is computed using a cubic interpolation formula
derived from the Moody Diagram by Dunlop (1991):
\[\begin{split}\begin{aligned}
f &= X1 + R \: (X2 + R \: (X3 + R \: X4)) \\
R &= \frac{Re}{2000} \\
X1 &= 7\: FA - FB \\
X2 &= 0.128 - 17 \: FA + 2.5 \: FB \\
X3 &= -0.128 + 13 \: FA - 2 \: FB \\
X4 &= 0.032 - 3 \: FA + 0.5 \: FB \\
FA &= { ( Y3 )}^{-2} \\
FB &= FA \left( 2 - \frac{AA \: AB } {Y2 \: Y3 } \right) \\
Y2 &= \frac{\epsilon} {3.7d} + AB \\
Y3 &= -2 \: log(Y2) \\
AA &= -1.5634601348517065795 \\
AB &= 0.00328895476345399058690
\end{aligned}\end{split}\]
The only time the head loss resistance coefficient is a function of flow rate is for the
Darcy-Weisbach’s transitional and fully turbulent flow regimes. The contribution that these cases
make to the \(\partial r / \partial q\) term appearing in the expression for a pipe’s head loss
gradient (Eq. (12.8)) are:
This has the same form as the Wagner pressure-dependent demand equation, but without the
lower and upper flow constraints. It can therefore be treated in a similar manner by
inverting it to represent head loss as a function of flow through a virtual link between
the junction and a virtual reservoir. The resulting formulas for an emitter’s gradient and
head loss become:
where \(\eta = 1/\gamma\) and \(C* = (1/C)^{\eta}\).
These expressions can then be used in the GGA solution method in the same manner as
was done for pressure-dependent demands.
Closed Links
When the status of a link is set to closed it is not actually removed from the
network as this would require re-factorizing the GGA coefficient matrix \(\boldsymbol{A}\)
which is a computationally expensive operation. It also might result in a portion of the network
becoming disconnected from any fixed grade node makng the coefficient matrix ill-conditioned.
Instead closed links are assigned a linear head loss function with a very high resistance coefficient:
The head loss equation for valves that are assigned a completely open status will contain
just the minor loss component of the general pipe head loss equation Eq. (12.1),
where the valve’s assigned velocity-based minor loss coefficient \(K\) has been converted
to a flow-based coefficient \(m\) as described previously. If \(K\) is zero then the
following low resistance head loss equation is used:
The way in which valve links that are neither fully open or closed are incorporated into the
GGA method depends on the type of valve.
Throttle Control Valve (TCV)
The TCV’s setting \(K\) is converted to a minor loss coefficient \(m\) and used with the
minor loss component of the general pipe head loss equation Eq. ((12.1)) yielding the
following equations:
\[\begin{split}\begin{aligned}
m &= { 0.02517 \: K} \: / \: {d}^{4} \\
g &= 2 \: m \: |q| \\
h_L &= g \: q \: / \: 2
\end{aligned}\end{split}\]
Pressure Breaker Valve (PBV)
A PBV’s setting \(H_{L}*\) specifies the head loss that the valve should produce across itself.
This can be enforced by assigning the following values to the link’s \(g\) and \(h_{L}\) values:
If the valve’s minor loss coefficient happens to produce a head loss greater than the setting at
the valve’s current flow rate then the valve is treated as a TCV.
General Purpose Valve (GPV)
A GPV uses a piecewise linear curve to relate head loss to flow rate. EPANET determines which
curve segment a given flow rate lies on and uses the slope \(r\) and intercept
\(h_{0}\) of that line segment to compute a head loss and its gradient as follows:
\[\begin{split}\begin{aligned}
g &= r \\
h_L &= h_{0} + r \: q
\end{aligned}\end{split}\]
Flow Control Valve (FCV)
A FCV serves to limit the flow through the valve to a particular setting \(Q*\). This
condition is enforced by breaking the network at the valve and imposing \(Q*\) as an
external demand at the upstream node and as an external supply (negative demand) at the
downstream node. The resulting expressions for the valve’s gradient and head loss are:
\[\begin{split}\begin{aligned}
g &= R_{\text{HIGH}} \\
h_L &= g \: (q - Q*)
\end{aligned}\end{split}\]
The right hand side element \(F_i\) corresponding to the valve’s upstream
node \(i\) has \(Q*\) subtracted from it while the element \(F_j\)
corresponding to the valve’s downstream node \(j\) has \(Q*\) added to it.
Pressure Reducing Valve (PRV)
A PRV acts to limit the pressure head on its downstream node to a given setting \(P*\).
To accomplish this EPANET breaks the network apart at the valve and treats the downstream
node \(j\) as if it were a fixed grade node with a head equal to \(P* + E_{j}\).
The net outflow from the node (excluding flow through the PRV itself) is assigned as an
external inflow to the upstream node \(i\) so as to maintain a proper flow balance.
Active PRVs do not have a head loss \(h_L\) and head loss gradient \(g\) assigned to
them. Instead the following adjustments to the GGA’s coefficient matrix \(\boldsymbol{A}\)
and right hand side vector \(\boldsymbol{F}\) are made directly:
where \(\Sigma \: {q}_{jk}\) is the net flow out of node \(j\) to all other nodes except
node \(i\) (and will be negative because it is a net outflow). The absolute value
of this quantity also becomes the new updated flow assigned to the valve.
Pressure Sustaining Valve (PSV)
A PSV acts to maintain a set pressure head \(P*\) on its upstream node. EPANET treats
it in a similar way as it does a PRV. The network is broken apart at the valve and
the upstream node \(i\) is treated as if it were a fixed grade node with a head equal
to \(P* + E_{i}\). The net inflow to the node (excluding flow through the PSV itself)
is assigned as an external inflow to the downstream node \(j\) so as to maintain a
proper flow balance.
As with PRVs, active PSVs do not have a head loss \(h_L\) and head loss gradient
\(g\) assigned to them. Instead the following adjustments to the GGA’s coefficient
matrix \(\boldsymbol{A}\) and right hand side vector \(\boldsymbol{F}\) are made directly:
where \(\Sigma \: {q}_{ki}\) is the net flow into node \(i\) from all other nodes except
node \(j\) (and will be positive because it is a net inflow). This quantity also becomes
the new updated flow assigned to the valve.
Low Flow Adjustment
For links that do not have a linear head loss relation, as the flow rate \(q\) approaches zero
so does the head loss gradient \(g\). This is also true for the the virtual links used
to model emitters and pressure-dependent demands.
As \(g\) approaches zero its reciprocal, which contributes to the elements of the head
solution matrix \(\boldsymbol{A}\), becomes unbounded. This can cause
\(\boldsymbol{A}\) to become ill-conditioned and prevent the GGA from converging.
In order to avoid this EPANET uses a linear head loss relation for both real and
virtual links whenever the link’s normal head loss gradient falls below a specific cutoff
\(G_{\text{LOW}}\) which has been set at 10-7. When this happens the following
equations are used to compute the link’s head loss and gradient:
This prevents a gradient value from ever being lower than \(G_{\text{LOW}}\).
Status Checks
Certain network links are considered to be discrete state devices since their status
(i.e., their mode of operation) can change depending on the flow or head conditions that occur.
The status changes that EPANET considers are:
Pipes with check valves and pumps should be closed when their flow becomes negative.
An FCV should be fully open if its flow drops below its setting.
PRVs and PSVs should be closed if their flow becomes negative.
A PRV should be fully open if its downstream pressure head is below its setting.
A PSV should be fully open if its upstream pressure head is above its setting.
A link with flow out of a tank should be closed if the tank is empty.
A link with flow into a tank should be closed if the tank is full and is not allowed to overflow.
A complementary set of status changes exists to reverse these state changes should network conditions
warrant it (such as opening a closed check valve if the flow through its pipe becomes positive).
EPANET performs its status checks:
on PRVs and PSVs at every GGA iteration.
on all other links every CHECKFREQ iteration until MAXCHECK iterations have been reached.
on all links once GGA convergence has been achieved.
For the latter case, if a status change occurs then the GGA iterations are continued.
CHECKFREQ and MAXCHECK are user supplied parameters that control the frequency at which
status checks are made. Their default values are 2 and 10, respectively.
Status checks are not made for links that have been permanently closed either by direct
assignment or through a control action. The same holds true for valves that have been directly
assigned to operate in a fully open position. Otherwise the way that status checks are
implemented varies by type of link:
Check Valves
The pseudo-code used to check the status of a pipe with a check valve looks as follows:
where h1 is the upstream node head and h2 is the downstream node head.
Pressure Reducing Valves
A PRV can either be completely open, completely closed, or active at its pressure setting.
The logic used to test the status of a PRV is:
If current status is ACTIVE then
if q < -Qtol then new status is CLOSED
else if h1 < H* + mLoss – Htol then new status is OPEN
else new status is ACTIVE
If curent status is OPEN then
if q < -Qtol then new status is CLOSED
else if h2 >= H* + Htol then new status is ACTIVE
else new status is OPEN
If current status is CLOSED then
if h1 >= H* + Htol
and h2 < H* – Htol then new status is ACTIVE
else
if h1 < H* - Htol
and h1 > h2 + Htol then new status is OPEN
else new status is CLOSED
where H* is the pressure setting converted to a head and mLoss is the minor
head loss through the valve when it is fully open (\(= m \; q^2\) where \(m\) is
derived from the valve’s velocity-based minor loss coefficient \(K\) as described previously).
Pressure Sustaining Valves
The logic used to test the status of a PSV is exactly the same as for PRVs except that
when testing against H*, h1 is switched with h2 as are the
> and < operators.
Links Connected to Tanks
The rules for temporarily closing a link connected to a tank are:
A pump whose upstream node is a tank will be closed when the tank becomes empty.
A pump whose downstream node is a tank will be closed when the tank becomes full if is not allowed to overflow.
A pipe or valve connected to an empty tank will close if a check valve pointing toward the tank would close.
A pipe or valve connected to a full tank not allowed to overflow will close if a check valve pointing away from the tank would close.
If the link had been temporarily closed due to one of these conditions and none of them still apply
then the link is re-opened.
Convergence Criteria
EPANET can use several different criteria to determine when the GGA iterations have
converged to an acceptable hydraulic solution:
The sum of all flow changes divided by the sum of all flows in all links
(both real and virtual) must be less than a stipulated ACCURACY value:
The error in satisfying the energy balance equation Eq. (12.3) for each
link (excluding closed links and active PRVs/PSVs) must be less than a specified head
tolerance.
The largest flow change among all links (both real and virtual) must be less than a
specified flow tolerance.
The first of these criteria is always applied while the latter two are optional. There is
no need to include an error limit on satisfying the flow balance
Eq. (12.4) since the GGA insures that this condition is always met.
Under-Relaxation Option
EPANET has the option to employ an under-relaxation strategy when updating link flows
at the end of each iteration. This provides a dampening effect on flow changes between
iterations that may prevent the GGA from overshooting the solution once it gets close to
converging.
When under-relaxation is in effect, the flow updating formula for a link becomes
\[{q} = {q} - {\alpha} \: {\Delta} q\]
where \(\alpha\) is taken as 0.6 and \({\Delta} q\) is given in Eq. (12.12).
Under-relaxation takes effect only after the relative total flow change criterion
(the first of the convergence criteria listed above) falls below a user supplied
DAMPLIMIT value. When DAMPLIMIT is zero (the default)
no under-relaxation occurs. A non-zero value will also cause status
checks on PRVs and PSVs to occur only after the under-relaxation condition is met rather
than at every iteration.
Extended Period Analysis
Analyzing the behavior of a distribution system over an extended period of time is
known as Extended Period Simulation (EPS). It can capture the effect that
changes in consumer demands, tank levels, pump schedules, and valve settings have
on system performance. EPS is also required to carry out a water quality analysis.
EPS can be added into a static network hydraulic model by
including an equation for each tank node that accounts for its change in
volume over time due to the net flow it receives:
\[\frac {d {V_s}} {d t} = Q_{s,net}\]
where \(V_s\) is the volume stored in tank \(s\), \(t\) is time and
\(Q_{s,net}\) is the net flow into (or out of) the tank. A second equation is also needed
that relates the tank’s elevation head \(H_s\) (i.e. its water surface elevation) to its
volume:
\[H_s = E_s + Y(V_s)\]
where \(E_s\) is the tank’s bottom elevation and \(Y(V)\) is the tank’s depth versus
volume function (which depends on the geometric shape of the tank).
These equations, together with the original conservation of energy and mass equations
Eqs. (12.3) and (12.4) constitute a system of
differential/algebraic equations where the unknown heads \(h\) and flows \(q\)
are now implicit functions of time. The system can be solved by using Euler’s method to
replace \(dV_{s}/dt\) with its forward difference approximation:
The tank levels \(H(t)\) and nodal demands existing at time \(t\) are used in the GGA
to solve the static network conservation equations resulting in set of new net flows into each
tank \({Q_{net}(t)}\). The above equations are then used to determine new tank levels
after a period of time \({\Delta}t\). Then a new static analysis is run for time
\(t + {\Delta}t\), using the new tank levels as well as any new demands and operating
conditions that apply to this new time period. The simulation proceeds in this fashion
from one time period to the next.
The detailed steps in implementing the EPS are as follows:
After a solution is found for the current time period, the time
step for the next solution is the minimum of:
The time until a new demand period begins
The shortest time for a tank to fill or drain,
The shortest time until a tank level reaches a point that
triggers a change in status for some link (e.g., opens or
closes a pump) as stipulated in a simple control
The next time until a simple timer control on a link kicks in
The next time at which a rule-based control causes a status
change somewhere in the network
In computing the times based on tank levels, the latter are assumed
to change in a linear fashion based on the current flow solution. The
activation time of rule-based controls is computed as follows:
Starting at the current time, rules are evaluated at a rule time
step. Its default value is 1/10 of the normal hydraulic time step
(e.g., if hydraulics are updated every hour, then rules are evaluated
every 6 minutes).
Over this rule time step, clock time is updated, as are the water
levels in storage tanks (based on the last set of pipe flows
computed).
If a rule’s conditions are satisfied, then its actions are added to a
list. If an action conflicts with one for the same link already on
the list then the action from the rule with the higher priority stays
on the list and the other is removed. If the priorities are the same
then the original action stays on the list.
After all rules are evaluated, if the list is not empty then the new
actions are taken. If this causes the status of one or more links to
change then a new hydraulic solution is computed and the process
begins anew.
If no status changes were called for, the action list is cleared and
the next rule time step is taken unless the normal hydraulic time
step has elapsed.
Time is advanced by the computed time step, new demands are found,
tank levels are adjusted based on the current flow solution, and link
control rules are checked to determine which links change status.
A new set of iterations with Eqs. (12.5) and
(12.11) are begun at the current set of flows.
The governing equations for EPANET’s water quality solver are based
on the principles of conservation of mass coupled with reaction
kinetics. The following phenomena are represented (Rossman et al.,
1993; Rossman and Boulos, 1996):
Advective Transport in Pipes
A dissolved substance will travel down the length of a pipe with the
same average velocity as the carrier fluid while at the same time
reacting (either growing or decaying) at some given rate.
Longitudinal dispersion is usually not an important transport
mechanism under most operating conditions. This means there is no
intermixing of mass between adjacent parcels of water traveling down
a pipe. Advective transport within a pipe is represented with the
following equation:
where \(C_i\) = concentration (mass/volume) in pipe \(i\) as a
function of distance \(x\) and time \(t\), \(u_i\) = flow
velocity (length/time) in pipe \(i\), and \(r\) = rate of reaction
(mass/volume/time) as a function of concentration.
Mixing at Pipe Junctions
At junctions receiving inflow from two or more pipes, the mixing of
fluid is taken to be complete and instantaneous. Thus the
concentration of a substance in water leaving the junction is simply
the flow-weighted sum of the concentrations from the inflowing pipes.
For a specific node \(k\) one can write:
where \(i\) = link with flow leaving node \(k\), \(I_k\) = set
of links with flow into \(k\), \(L_j\) = length of link \(j\),
\(Q_j\) = flow (volume/time) in link \(j\), \(Q_{k,ext}\) =
external source flow entering the network at node \(k\), and
\(C_{k,ext}\) = concentration of the external flow entering at node
\(k\). The notation \(C_{i|x=0}\) represents the concentration at
the start of link \(i\), while \(C_{i|x=L}\) is the concentration
at the end of the link.
Mixing in Storage Tanks
EPANET has several different ways to represent the mixing that occurs within storage tank nodes.
The following terms will be useful when describing these:
\(W_{s,IN}\) is the rate of mass inflow into tank \(s\):
where \(O_s\) is the set of links receiving outflow from the tank.
A description of the mass balance equations used to model each type of tank
mixing now follows.
Complete Mixing
Many tanks operating under fill-and-draw conditions will be completely mixed
providing that sufficient momentum flux is imparted to their inflow
(Rossman and Grayman, 1999). Under completely mixed conditions (Fig. 3.8)
the concentration throughout the tank is a blend of the current contents
and that of any entering water. At the same time, the internal
concentration could be changing due to reactions. The following
equation expresses these phenomena:
where \(V_s\) = volume in storage at time \(t\), \(C_s\) = concentration
within the storage facility, and \(r\) = rate of reaction as a function of concentration.
Two Compartment Mixing
Under two-compartment mixing (Fig. 3.9) the tank contains two completely
mixed compartments. The first compartment serves as the tank’s inlet/outlet zone while the
second compartment stores any excess volume from the first.
In these equations \(s1\) refers to the first compartment, \(s2\) to the second
compartment, \(Q_{s,{1{\to}2}}\) is the flow rate from compartment 1 to 2 and
\(Q_{s,{2{\to}1}}\) is the flow rate from compartment 2 to 1.
When the tank is filling, \(Q_{s,{1{\to}2}}\) equals the tank’s rate of inflow when the
first compartment is full; otherwise it is zero. When emptying, \(Q_{s,{2{\to}1}}\)
equals the tank’s rate of outflow when the first compartment is full; otherwise it is zero.
First-In First-Out (FIFO) Plug Flow
A FIFO storage tank is shown in Fig. 3.10. Conceptually it behaves like a plug
flow basin with water entering at one end and exiting at the opposite end. It’s mass balance
equation is the same as Eq. (12.21) used to represent advective transport within
a pipe. The boundary condition at the tank’s entrance (where \(x = 0\)) is
where \(Q_{s,IN}\) is the total inflow into the tank. The outflow concentration from the
tank is the concentration at a distance \(x\) equal to the height of water in the tank.
Last-In First-Out (LIFO) Plug Flow
A LIFO storage tank is shown in Fig. 3.11. Like the FIFO tank, it also obeys
Eq. (12.21) for advective transport within a pipe. Under filling conditions
the location where \(x = 0\) is at the tank bottom where the boundary condition for
\(C_s\) is given by Eq. (12.28). When emptying, the “flow” direction is
reversed. The boundary condition at \(x = 0\) is zero and the outflow concentration
is the concentration at the tank’s bottom.
Bulk Flow Reactions
While a substance moves down a pipe or resides in storage it can
undergo reaction with constituents in the water column. The rate of
reaction can generally be described as a power function of concentration:
\[r = K_b \: {C}^{n }\]
where \(K_b\) = a bulk reaction constant and \(n\) = the reaction order.
When a limiting concentration exists on the ultimate growth or loss of a
substance then the rate expression becomes
\[\begin{split}\begin{aligned}
\begin{array}{l l}
R = {K}_{b} ({C}_{L}-C) \: {C}^{n-1} & for \; n > 0, K_b < 0 \\
R = {K}_{b} (C - {C}_{L}) \: {C}^{n - 1} & for \; n > 0, K_b < 0
\end{array}
\end{aligned}\end{split}\]
where \(C_L\) = the limiting concentration.
Some examples of different reaction rate expressions are:
This model can be applied to the growth of disinfection by-products,
such as trihalomethanes, where the ultimate formation of by-product
(\(C_L\)) is limited by the amount of reactive precursor present.
Two-Component, Second Order Decay (\(C_L \neq 0, K_b < 0, n = 2\)):
\[R = {K}_{b} C({C}_{L} - C)\]
This model assumes that substance A reacts with substance B in some
unknown ratio to produce a product P. The rate of disappearance of A
is proportional to the product of A and B remaining. \(C_L\) can be
either positive or negative, depending on whether either component A
or B is in excess, respectively. Clark (1998) has had success in
applying this model to chlorine decay data that did not conform to
the simple first-order model.
As a special case, when a negative reaction order n is specified,
EPANET will utilize the Michaelis-Menton rate equation, shown above
for a decay reaction. (For growth reactions the denominator becomes
\(C_L + C\).) This rate equation is often used to describe
enzyme-catalyzed reactions and microbial growth. It produces first-
order behavior at low concentrations and zero-order behavior at
higher concentrations. Note that for decay reactions, \(C_L\) must
be set higher than the initial concentration present.
Koechling (1998) has applied Michaelis-Menton kinetics to model
chlorine decay in a number of different waters and found that both
\(K_b\) and \(C_L\) could be related to the water’s organic
content and its ultraviolet absorbance.
Zero-Order growth (\(C_L = 0, K_b = 1, n = 0\))
\[R = 1.0\]
This special case can be used to model water age, where with each
unit of time the “concentration” (i.e., age) increases by one unit.
The relationship between the bulk rate constant seen at one
temperature (T1) to that at another temperature (T2) is often
expressed using a van’t Hoff - Arrehnius equation of the form:
\[{K}_{b2}={K}_{b1}{\theta}^{T2 - T1}\]
where \(\theta\) is a constant. In one investigation for chlorine,
\(\theta\) was estimated to be 1.1 when \(T1\) was 20 deg. C
(Koechling, 1998).
Pipe Wall Reactions
While flowing through pipes, dissolved substances can be transported
to the pipe wall and react with material such as corrosion products
or biofilm that are on or close to the wall. The amount of wall area
available for reaction and the rate of mass transfer between the bulk
fluid and the wall will also influence the overall rate of this
reaction. The surface area per unit volume, which for a pipe equals 2
divided by the radius, determines the former factor. The latter
factor can be represented by a mass transfer coefficient whose value
depends on the molecular diffusivity of the reactive species and on
the Reynolds number of the flow (Rossman et. al, 1994). For first-
order kinetics, the rate of a pipe wall reaction can be expressed as:
\[r = \frac{ 2 k_w k_f C } { R (k_w + k_f) }\]
where \(k_w\) = wall reaction rate constant (length/time),
\(k_f\) = mass transfer coefficient (length/time), and \(R\) = pipe
radius. For zero-order kinetics the reaction rate cannot be any higher
than the rate of mass transfer, so
\[r = \min ( k_w, k_f C) ( 2/R )\]
where \(k_w\) now has units of mass/area/time.
Mass transfer coefficients are usually expressed in terms of a
dimensionless Sherwood number (\(Sh\)):
\[{k}_{f} = Sh \frac{\mathcal{D}}{d}\]
in which \(\mathcal{D}\) = the molecular diffusivity of the species being
transported (length 2 /time) and \(d\) = pipe diameter. In
fully developed laminar flow, the average Sherwood number along the length
of a pipe can be expressed as
in which \(Re\) = Reynolds number and \(Sc\) = Schmidt number
(kinematic viscosity of water divided by the diffusivity of the chemical)
(Edwards et.al, 1976). For turbulent flow the empirical correlation
of Notter and Sleicher (1971) can be used:
\[Sh = 0.0149{Re}^{0.88}{Sc}^{1/3}\]
System of Equations
When aplied to a network as a whole, Eqs. (12.21), (12.22),
and the various tank mixing equations represent a coupled set of differential/algebraic
equations with time-varying coefficients that must be solved for \(C_{i|x=0}\)
at the start of each pipe \(i\) (which also represents the concentration at the
junction node it is attached to) and \(C_s\) in each storage facility \(s\).
This solution is subject to the following set of externally imposed conditions:
Initial conditions that specify \(C_i\) for all \(x\) in each
pipe \(i\) and \(C_s\) in each storage facility \(s\) at
time zero.
Boundary conditions that specify values for \(C_k,ext\) and
\(Q_{k,ext}\) for all time \(t\) at each node \(k\) which
has external mass inputs.
Hydraulic conditions which specify the volume \(V_s\) in each
storage facility \(s\) and the flow \(Q_i\) in each link
\(i\) at all times \(t\).
Lagrangian Transport Algorithm
EPANET’s water quality simulator was developed by Rossman and Boulos (1996)
drawing upon earlier work by Liou and Kroon (1987). It uses a Lagrangian
time-based approach to track the fate of discrete segments of water as they
move along pipes and mix together at junctions between fixed-length time
steps. These water quality time steps are typically much shorter
than the hydraulic time step (e.g., minutes rather than hours) to accommodate
the short times of travel that can occur within pipes. As time progresses,
the size of the most upstream segment in a pipe may increase as water enters
the pipe while an equal loss in size of the most downstream segment occurs as
water leaves the link; therefore, the total volume of all the segments within a pipe
does not change and the size of the segments between these leading and
trailing segments remains unchanged (see Fig. 12.1).

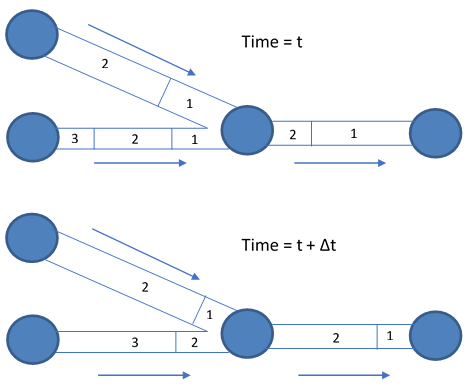

Fig. 12.1 Behavior of segments in the Lagrangian solution method.
The following steps occur within each such time step:
The water quality in each segment is updated to reflect any reaction
that may have occurred over the time step.
For each node in topological order (from upstream to downstream):
If the node is a junction or tank, the water from the leading
segments of the links with flow into it, if not zero, is blended
together to compute a new water quality value. The volume
contributed from each segment equals the product of its link’s
flow rate and the time step. If this volume exceeds that of the
segment, then the segment is destroyed and the next one in line
behind it begins to contribute its volume.
If the node is a junction its new quality is computed as its total
mass inflow divided by its total inflow volume. If it is a tank,
its quality is updated depending on the method used to model
mixing in the tank.
The node’s concentration is adjusted by any contributions made by
external water quality sources.
A new segment is created in each link with flow out of the node.
Its volume equals the product of the link flow and the time step
and its quality equals the new quality value computed for the node.
To cut down on the number of segments, new ones are only created if
the new node quality differs by a user-specified tolerance from that of
the last segment in the outflow link. If the difference in quality is
below the tolerance, then the size of the current last segment in the
link is simply increased by the volume flowing into the link over the
time step and the segment quality is a volume-weighted average of the
node and segment quality.
This process is then repeated for the next water-quality time step. At
the start of the next hydraulic time step any link experiencing a flow
reversal has the order of its segments reversed and if any flow
reversal occurs the network’s nodes are re-sorted topologically, from
upstream to downstream. Sorting the nodes topologically allows the method to
conserve mass in most situations, e.g., even when very short pipes or zero-length
pumps and valves are encountered (Davis et al., 2018). Initially each pipe in
the network consists of a single segment whose quality equals the initial quality
assigned to the upstream node.
